Cisco Catalyst C9350 Series Enterprise Switch with 48 Port 10G Uplinks LACP and POE Support

Name: Cisco Catalyst C9350 Series Enterprise Switch with 48 Port 10G Uplinks LACP and POE Support
Brand: Cissco
Price: 1 USD

Buy cheap Cisco Catalyst C9350 Series Enterprise Switch with 48 Port 10G Uplinks LACP and POE Support product

Brand Name : Cissco

Model Number : C9350-48TX, C9350-48HX

Place of Origin : Beijing, China

MOQ : 1

Price : $1,299-2,399

Port count : 48

Transmission rate : 10/100/1000Mbps

Communication mode : Full-Duplex & Half-Duplex

Bandwidth specification : 1760G

Switching capacity : 3360G (with stacking)

Forwarding rate : 1309.44 MPPS

Stacking forwarding rate : 2499.84 MPPS

Chassis dimensions : 4.4 x 44.5 x 47.2 cm

Weight : 17.7 lb (8 kg)

Input voltage : AC: 100V to 230V / DC: -36V to -72V

Operating temperature : -5° to 45° C (23° to 113° F)

Storage temperature : -40° to 75° C (40° to 167° F)

Humidity range : 10% to 95% non-condensing

MTBF : 261150 hours

Function support : LACP, POE, QoS, SNMP, Stackable, VLAN

Contact Now

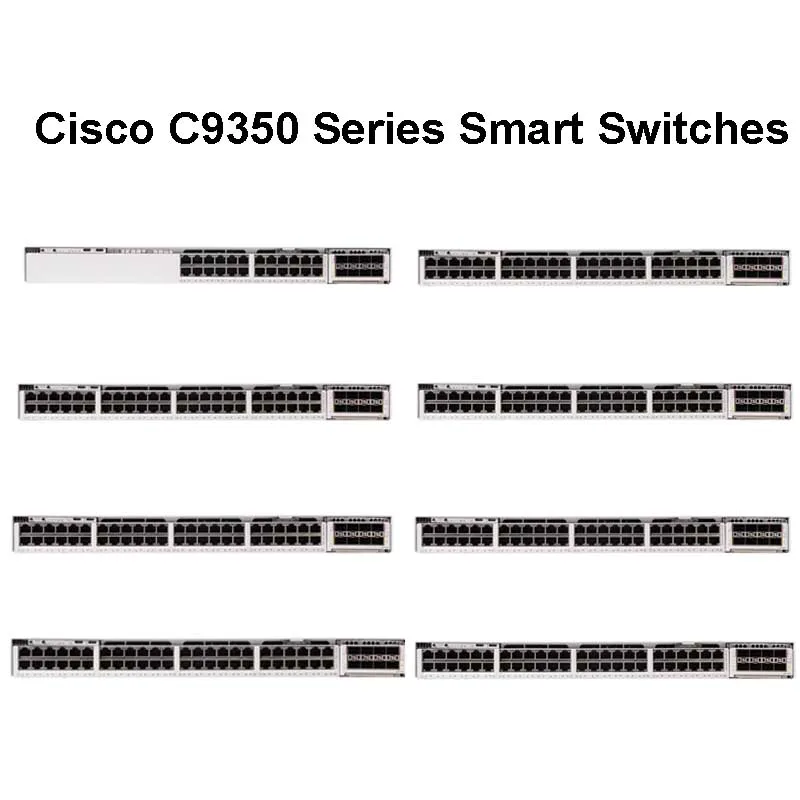

Cisco C9350 Series Smart Switches

Cisco Catalyst C9350 Series Enterprise Switch with 48 Port 10G Uplinks LACP and POE Support

C9350 Series Bandwidth specification
SKU	Bandwidth specification	Switching capacity with stacking	Forwarding rate (MPPS)	Forwarding rate with stacking (MPPS)
C9350-24T	448G	2048G	333.312	1523.712
C9350-48T	496G	2096G	369.024	1559.424
C9350-24P	448G	2048G	333.312	1523.712
C9350-48P	496G	2096G	369.024	1559.424
C9350-24U	448G	2048G	333.312	1523.712
C9350-48U	496G	2096G	369.024	1559.424
C9350-48HX	1760G	3360G	1309.44	2499.84
C9350-48TX	1760G	3360G	1309.44	2499.84

Overview

Cisco C9350 Series Smart Switches deliver exceptional performance and robust security with flexible management options to meet the demands of modern enterprise networks.More than just the next generation of enterprise-grade switches,

Cisco C9350 Series Smart Switches are the evolution of enterprise-class stackable fixed campus access-layer switches designed to deliver security, scale, and flexibility while connecting, powering, measuring, and managing the network from enterprise access edge through the core.

Access switches for every network

Cisco C9350 Series Smart Switches

The next generation of smart switches from Cisco, purpose-built to power, secure, and simplify the network for AI.

Explore C9350 Series Smart Switches>>

Cisco Catalyst 9400 Series Switches

Modular switches for enterprise-class midsize and large campus access networks.

Explore Catalyst 9400 Series >>

Cisco Catalyst 9300 Series Switches

Fixed stackable switches for enterprise-class lean-branch and campus access networks that need extra scale and security.

Explore Catalyst 9300 Series >>

Cisco Catalyst 9200 Series Switches

Fixed stackable switches for enterprise-class access deployments for small branches and midsize campuses.

Explore Catalyst 9200 Series >>

Cisco Meraki MS switches

Cloud-managed switching for the aggregation layer, simplifying management and reducing complexity.

Explore Meraki MS switches >>

Cisco Catalyst 1300 Series Switches

Easy-to-manage, enterprise-grade switches that provide the performance needed for modern small offices.

Explore Catalyst 1300 Series >>

Cisco C9350 Series Smart Switches

Description			Specifications
SKU/PID			C9350-24T C9350-48TX C9350-48T C9350-48HX C9350-24P C9350-48P C9350-24U C9350-48U
Dimensions (H x W x D)	Chassis only	4.4 x 44.5 x 38.3 cm 4.4 x 44.5 x 47.2 cm 1.73 x 17.5 x 15.1 in 1.73 x 17.5 x 18.6 in
		With default power supply	4.4 x 44.5 x 42 cm 4.4 x 44.5 x51 cm 1.73 x 17.5 x 16.5 in 1.73 x 17.5 x 20 in
		With 1600W power supply	4.4 x 44.5 x 50.1 cm 4.4 x 44.5 x 51 cm 1.73 x 17.5 x 19.7 in 1.73 x 17.5 x 20 in
Weight with default power supply			C9350-24T = 13.8 lbs (6.26 kg) C9350-48TX = 17.7 lb (8 kg) C9350-48T = 13.8 lb (6.26kg) C9350-48HX = 18.73 lb (8.5 kg) C9350-24P = 13.54 lb (6.14 kg) C9350-48P = 13.54 lb (6.14 kg) C9350-24U = 13.94 lb (6.35 kg) C9350-48U = 14.14 lb (6.42 kg)
Input voltage			AC: 100V to 230V DC: -36V to -72 VDC
Operating temperature			-5° to 45° C (23° to 113° F) up to 6000 ft (about 1.83 km) -5° to 40° C (23° to 104° F) up to 10,000 ft (about 3.05 km)
Storage temperature			-40° to 75° C (40° to 167° F)
Relative humidity, operating and non-operating, non-condensing			10% to 95%, non-condensing
Mean time between failures (MTBF) (hours)			C9350-24T: 346560 C9350-48TX: 261150 C9350-48T: 357320 C9350-48HX: 277660 C9350-24P: 342720 C9350-48P: 391980 C9350-24U: 313860 C9350-48U: 271720
