C9350 Series 24/48 Port Gigabit Smart Managed Switch with LACP and POE for Enterprise Networks

Name: C9350 Series 2448 Port Gigabit Smart Managed Switch with LACP and POE for Enterprise Networks
Brand: Cissco
Price: 1 USD

Buy cheap C9350 Series 24/48 Port Gigabit Smart Managed Switch with LACP and POE for Enterprise Networks product

Brand Name : Cissco

Model Number : C9350-24/48T, C9350-24/48P, C9350-24/48U, C9350-48HX, C9350-48TX

Place of Origin : Beijing, China

MOQ : 1

Price : $1,299-2,399

Port count : 24/48

Transmission rate : 10/100/1000Mbps

Communication mode : Full-Duplex & Half-Duplex

Bandwidth specification : 448G to 1760G

Switching capacity : 2048G to 3360G

Forwarding rate : 333.312 to 1309.44 MPPS

Chassis dimensions : 4.4 x 44.5 x 38.3 cm to 4.4 x 44.5 x 47.2 cm

Weight : 6.14 kg to 8.5 kg

Input voltage : AC: 100V to 230V, DC: -36V to -72V

Operating temperature : -5° to 45° C

Storage temperature : -40° to 75° C

Humidity range : 10% to 95%, non-condensing

MTBF : 261150 to 391980 hours

Stacking capacity : 2048G to 3360G

Forwarding rate stacked : 1523.712 to 2499.84 MPPS

Contact Now

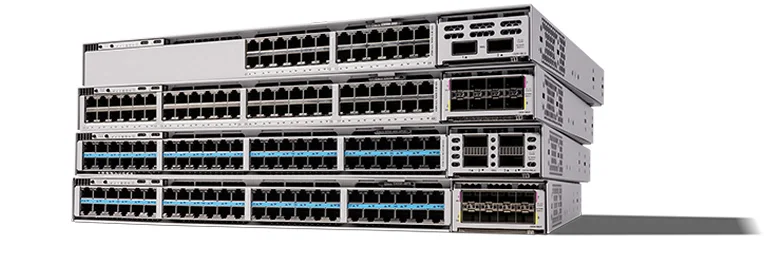

Cisco C9350 Series Smart Switches

C9350 Series 24/48 Port Gigabit Smart Managed Switch with LACP and POE for Enterprise Networks

C9350 Series Bandwidth specification
SKU	Bandwidth specification	Switching capacity with stacking	Forwarding rate (MPPS)	Forwarding rate with stacking (MPPS)

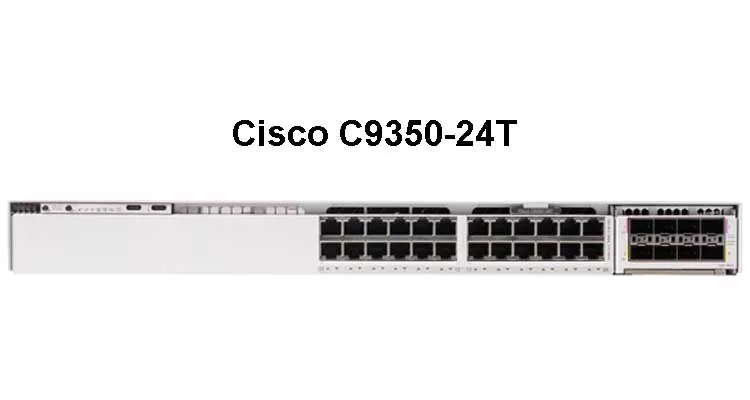

C9350-24T	448G	2048G	333.312	1523.712

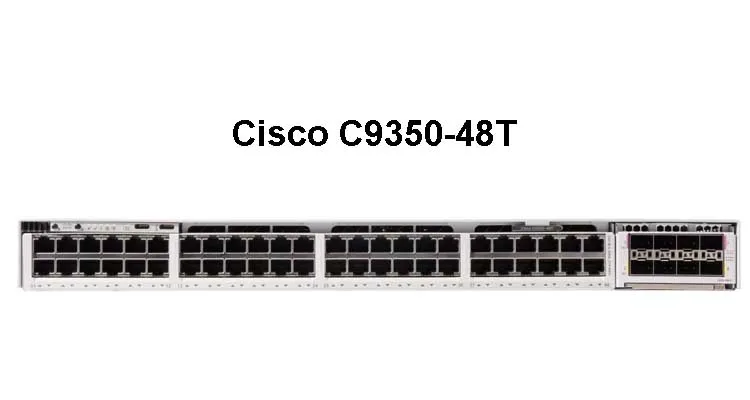

C9350-48T	496G	2096G	369.024	1559.424

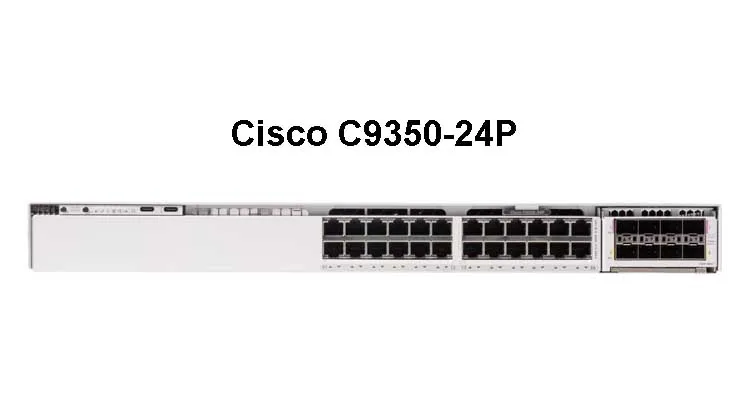

C9350-24P	448G	2048G	333.312	1523.712

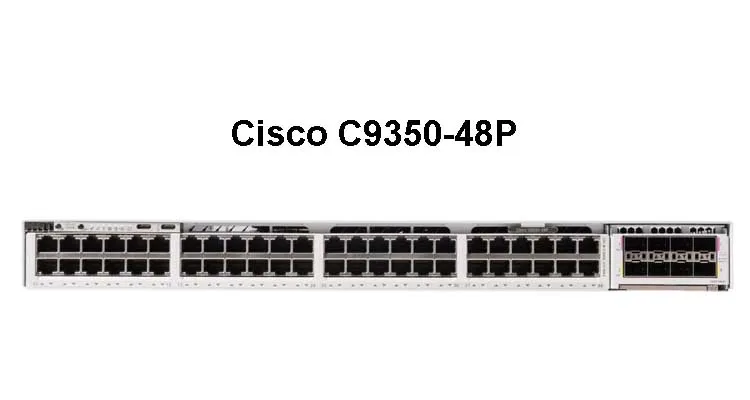

C9350-48P	496G	2096G	369.024	1559.424
C9350-24U	448G	2048G	333.312	1523.712

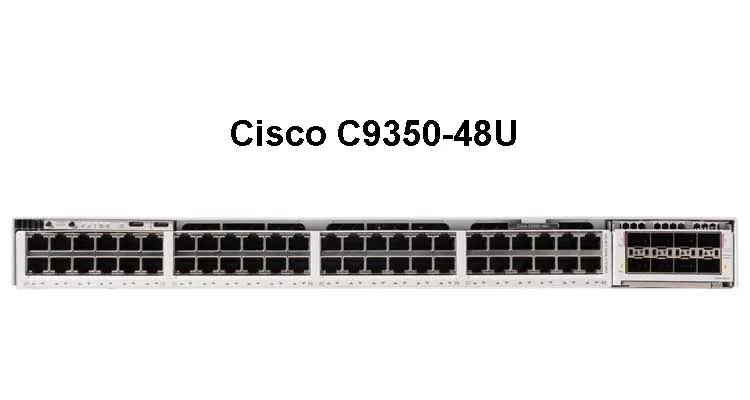

C9350-48U	496G	2096G	369.024	1559.424

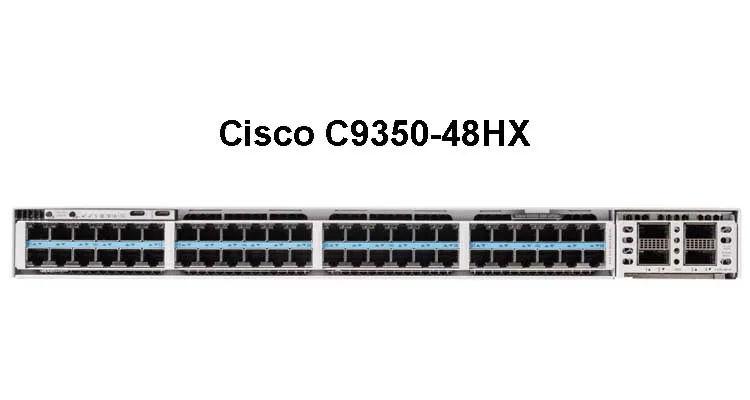

C9350-48HX	1760G	3360G	1309.44	2499.84

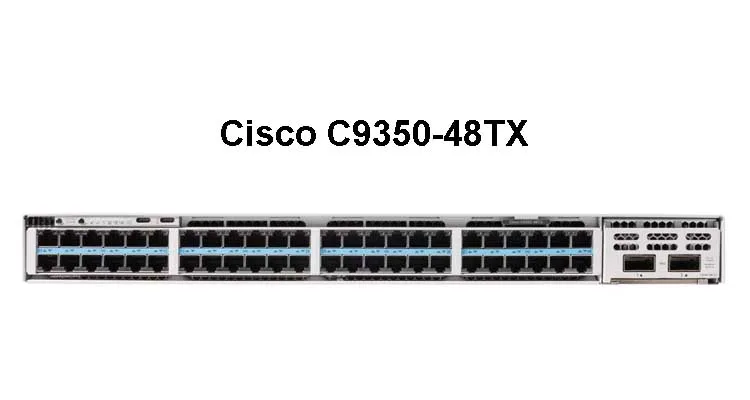

C9350-48TX	1760G	3360G	1309.44	2499.84

Overview

Cisco C9350 Series Smart Switches deliver exceptional performance and robust security with flexible management options to meet the demands of modern enterprise networks.More than just the next generation of enterprise-grade switches,

Cisco C9350 Series Smart Switches are the evolution of enterprise-class stackable fixed campus access-layer switches designed to deliver security, scale, and flexibility while connecting, powering, measuring, and managing the network from enterprise access edge through the core.

Cisco C9350 Series Smart Switches

Description			Specifications
SKU/PID			C9350-24T C9350-48TX C9350-48T C9350-48HX C9350-24P C9350-48P C9350-24U C9350-48U
Dimensions (H x W x D)	Chassis only	4.4 x 44.5 x 38.3 cm 4.4 x 44.5 x 47.2 cm 1.73 x 17.5 x 15.1 in 1.73 x 17.5 x 18.6 in
		With default power supply	4.4 x 44.5 x 42 cm 4.4 x 44.5 x51 cm 1.73 x 17.5 x 16.5 in 1.73 x 17.5 x 20 in
		With 1600W power supply	4.4 x 44.5 x 50.1 cm 4.4 x 44.5 x 51 cm 1.73 x 17.5 x 19.7 in 1.73 x 17.5 x 20 in
Weight with default power supply			C9350-24T = 13.8 lbs (6.26 kg) C9350-48TX = 17.7 lb (8 kg) C9350-48T = 13.8 lb (6.26kg) C9350-48HX = 18.73 lb (8.5 kg) C9350-24P = 13.54 lb (6.14 kg) C9350-48P = 13.54 lb (6.14 kg) C9350-24U = 13.94 lb (6.35 kg) C9350-48U = 14.14 lb (6.42 kg)
Input voltage			AC: 100V to 230V DC: -36V to -72 VDC
Operating temperature			-5° to 45° C (23° to 113° F) up to 6000 ft (about 1.83 km) -5° to 40° C (23° to 104° F) up to 10,000 ft (about 3.05 km)
Storage temperature			-40° to 75° C (40° to 167° F)
Relative humidity, operating and non-operating, non-condensing			10% to 95%, non-condensing
Mean time between failures (MTBF) (hours)			C9350-24T: 346560 C9350-48TX: 261150 C9350-48T: 357320 C9350-48HX: 277660 C9350-24P: 342720 C9350-48P: 391980 C9350-24U: 313860 C9350-48U: 271720
