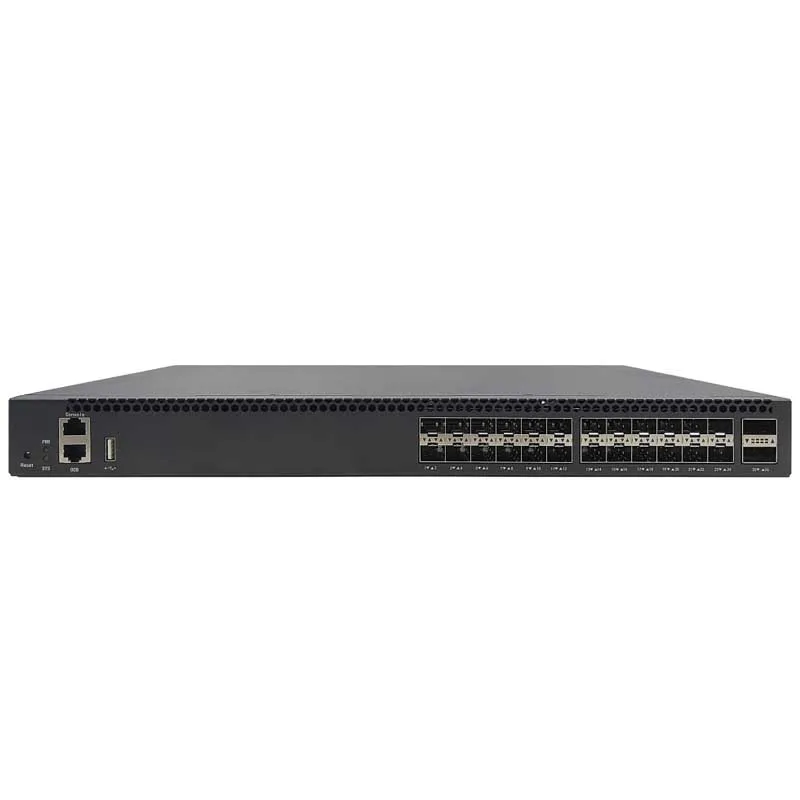

S6700-24TF-2QF L3 Managed Switch with 2 100G QSFP28 Uplink for Data Center Enterprise Core Network

Model Number : S6700-24TF-2QF

Place of Origin : Beijing, China

MOQ : 1

Price : $1,299-1,399

Port count : 24

Uplink ports : 2×100G QSFP28

SFP+ ports : 24×10G

Console port : 1

RJ45 port : 1

USB interface : 1×USB2.0

Bandwidth : 880Gbps

Forwarding rate : 540Mpps

MAC table : 96K

Port buffer : 9Mb

VLAN support : 4K

Power input : AC 100-240V/50-60Hz

Redundant power : Yes

Fan redundancy : 2+1

Dimensions : 440mm×320mm×44mm

Contact Now

S6700-24TF-2QF 100G uplink 24 port 10G Managed Switches

S6700-24TF-2QF L3 Managed Switch with 2 100G QSFP28 Uplink for Data Center Enterprise Core Network

S6700-24TF-2QF Switches Specification

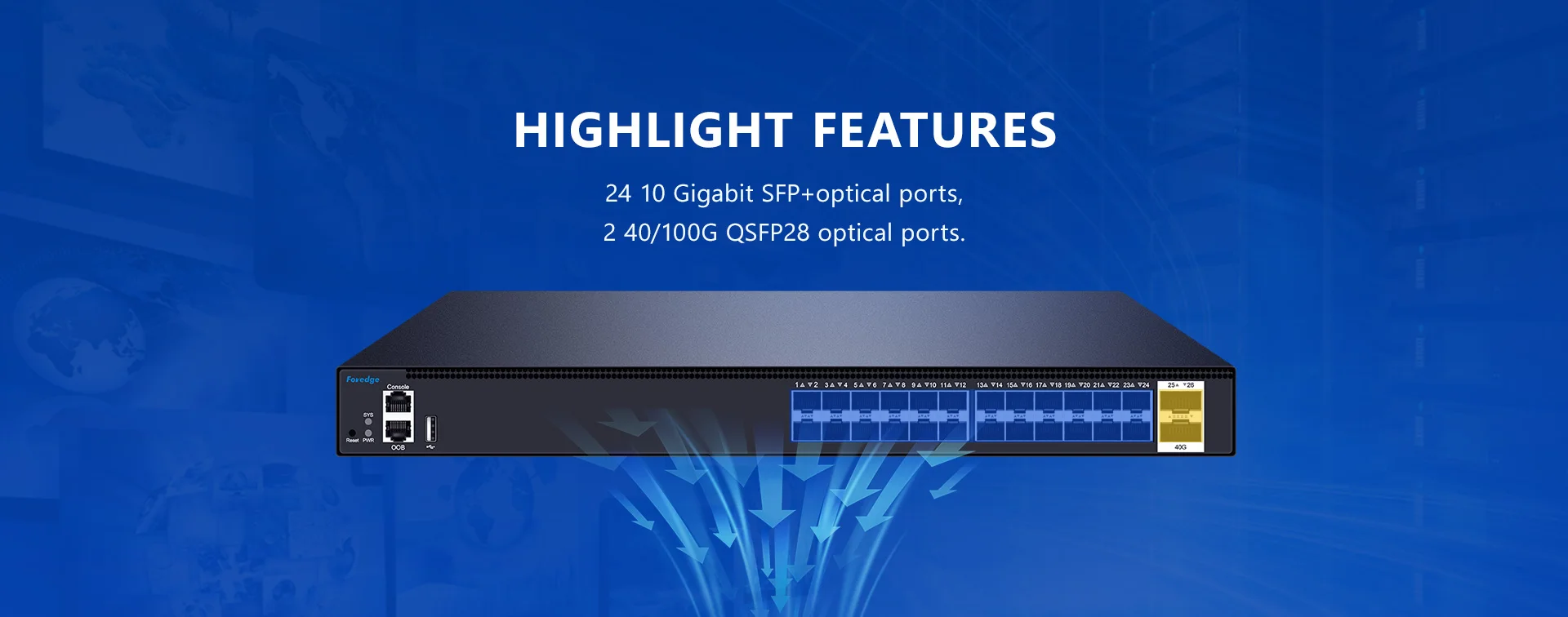

Network Interface	● 2410G SFP+ ports ● 240/100G QSFP28 ports ● 1Console port,1RJ45 management port ● 1*USB2.0 interface
Network Protocol	● IEEE 802.3,IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab, IEEE 802.3z,IEEE 802.3ad,IEEE 802.3x,IEEE 802.1p, IEEE 802.1q,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w
Performance	● Bandwith ：880Gbps ● Packet forwarding rate：540Mpps ● MAC table size：96K ● Port buffer：9Mb ● Forwarding type：storage forwarding
LED Indicator	● 2410G Link/Act indicator ● 240/100G Link/Act indicator ● 1Power indicator ● 1SYS indicator
Power Supplier	● Power input：AC 100-240V/50-60Hz ● Redundant power,support hot-swap ● 2+1 redundant fans
Dimension	● WxDxH：440mm×320mm×44mm
Safty Regulations	● CE/ROHS/FCC
VLAN	Support 4K VLAN Support 802.1Q VLAN,MAC VLAN ,IP VLAN ，Voice VLAN
DHCP	Support DHCP server Support DHCP relay Support DHCP Snooping

S6700-24TF-2QF 100G uplink 24 port 10G Managed Switches
